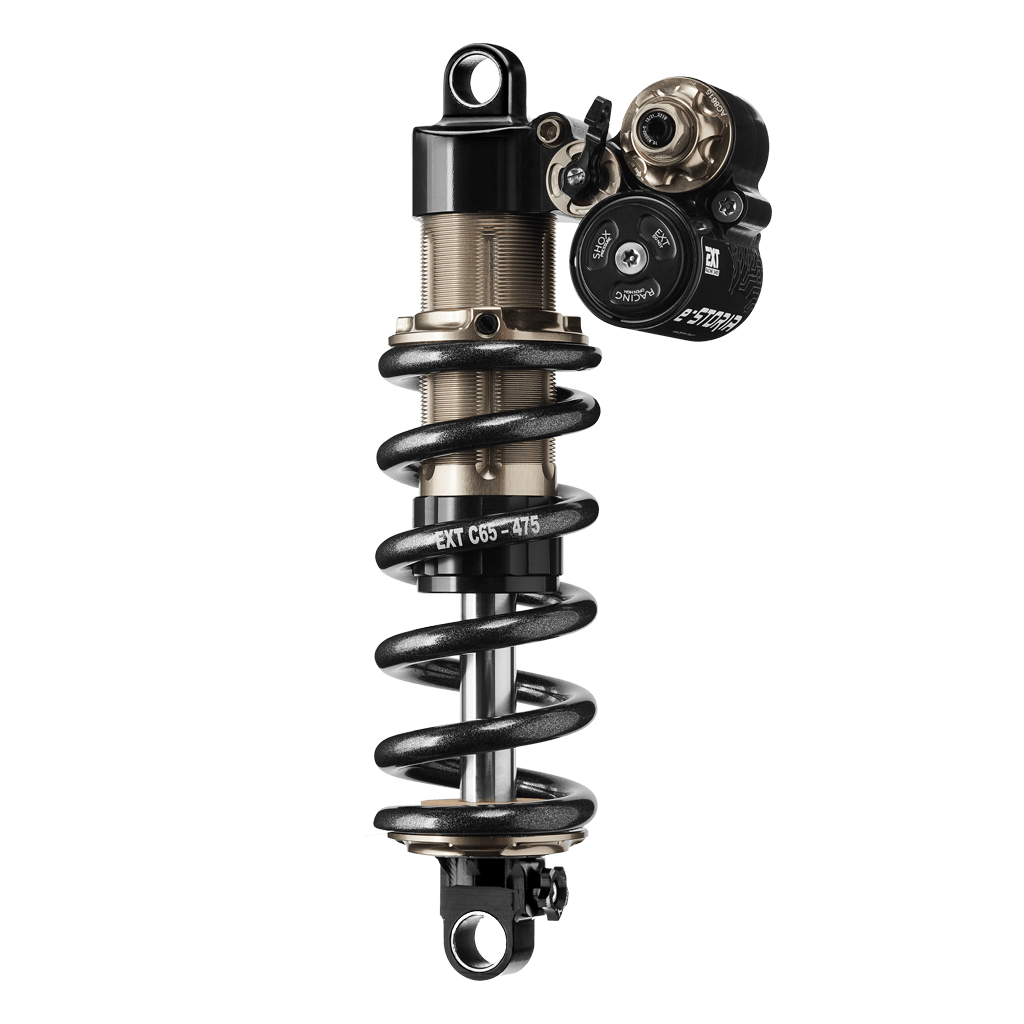

E-Storia

E-bike dedicated damper



The e-Storia features much of the same technology of the Storia V3 but in a more robust package built specifically for the stresses involved with the higher vehicle weight of e-bikes and tailored to provide ultimate control for every type of rider, from the enthusiast to those competing at the elite level of e-bike enduro riding. While the Storia V3 is built for best-in-class weight and performance, the e-Storia is designed with an emphasis on toughness to drastically improve reliability over dampers without dedicated e-bike construction. The stronger shock design can help increase the lifespan of bike chassis components as well, and increase range of tune-ability accommodating a wider range of bikes and riders. An industry “first” and an ultra-high performance suspension; it’s specifically designed for aggressive e-bike riding, super comfort level for professional riders and more in general for all the enthusiasts.

gallery

TECHNOLOGY and features

ADJUSTABLE HBC

No more harsh bottom-out! This system makes the compression progressive with damping force increasing in the last 15% of the stroke, allowing for softer spring rates, and offering better traction.

LOK 2.0

An independent circuit valve that produces the support needed for ideal pedaling efficiency. LOK can also be custom tuned based on rider preferences.

LOW PRESSURE AIR RESERVOIR

The air contained inside the reservoir is only inflated to 55 psi! This maximizes the sensitivity of the shock for a smoother run! Read More >

Specifications

  • Integrated reservoir head design
  • Stronger body construction
  • Reservoir with large volume bladder design
  • Dedicated spring platform for stiffer springs
  • Negative spring to avoid harsh top-out and improve bike platform stability
  • New rebound adjustment to increase tuning range
  • Chromemoly shaft with low-friction coating
  • New compression valve for more adjustability and smoother riding
  • 4 way adjustable (LSC-HSC-LSR-Lok proprietary system)
  • No cavitation
  • Very low hysteresis to improve dynamic response
  • Completely independent bump/rebound adjustment
  • New check valve with low inertia for a better control and sensitivity
  • New externally adjustable HBC
  • More efficient HBC design to increase bottom out protection
  • New seals design to reduce friction
  • New main piston design with high flow to improve sensitivity and tunability
  • All valves with turbulent flow for very low temperature depending
  • New high viscosity index oil for longer consistend riding in all situations
  • Standard or Trunnion mount
  • Weight 800 gr (230/65 mm size, including a C65 spring)
Price 1053,63 € + Vat (two coils included)
METRIC STANDARD

210 / 50 mm
210 / 52.5 mm
210 / 55 mm
230 / 57.5mm
230 / 60 mm
230 / 62.5 mm
230 / 65 mm
250 / 67.5 mm
250 / 70 mm
250 / 72.5 mm
250 / 75 mm
METRIC TRUNNION

185 / 50 mm
185 / 52.5 mm
185 / 55 mm
205 / 57.5 mm
205 / 60 mm
205 / 62.5 mm
205 / 65 mm
225 / 67.5 mm
225 / 70 mm
225 / 72.5 mm
225 / 75 mm
